The Coin Game

The Coin Game is a scenario for two agents and used to introduce rule based AI in Mark Liu’s " AlphaGo Simplified" book (although many other techniques can be used). Several varients are available with perhaps the most famous one mirroring the classic game Nim.

Agents take turns removing coins from rows (or piles) labeled 0…(n-1). Depending on the scenario, the number of coins in each row can be different, and so to is the maximum number of coins that can be removed; but all coins must always be taken from the same row. The winner is the agent who forces the other to remove the last coin.

Goal

Write two AI’s that can play against each other, then learn how to counter each other’s tactics.

Note: These scenarios can be ‘solved’ so for each scenario there is a perfect strategy where the winner can be determined by which agent goes first.

Algorithms and Hints

Start with two random agents, then limit their options to only take valid moves. You could now investigate either a Q-Learning strategy, or a rules based strategy to discover the perfect play.

Setup

There are several variations of this scenario that can be chosen at startup:

Scenario Name	Coin layout	Max Coins taken
SINGLE_21_2	Single row of 21 coins	2
SINGLE_21_3	Single row of 21 coins	3
DOUBLE_21_2	Two rows of 21 coins	2
DOUBLE_21_3	Two rows of 21 coins	3
NIM	Row 0 = 1 coin Row 1 = 3 coins Row 2 = 5 coins Row 3 = 7 coins	2

Protocol

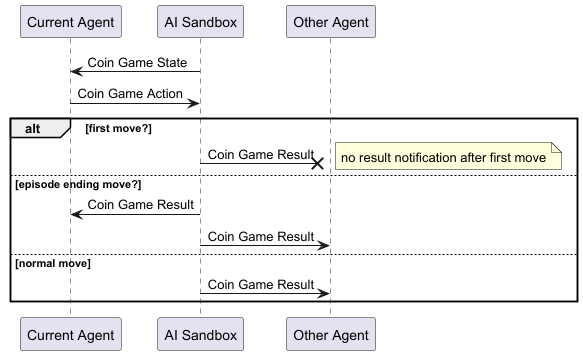

The protocol is defined in CoinGame.proto; while it follows the standard State -> Action -> Reward pattern, the reward is dependent not only on the agents move, but also the result of the other agents move.

CoinGameState

Component	Data Type	Description
sessionID	string	Unique identifier for this simulation run
episodeID	string	Unique identifier for the current episode
rowCount	int32	The number of rows on the game board
coinCount	repeated int32	The number of coins in each row (array length equals rowCount)
maxPick	int32	The maximum number of coins that can be taken from a row in a single turn

CoinGameAction

Component	Data Type	Description
selectedRow	int32	The row from which to remove coins (0-based index)
removeCount	int32	The number of coins to remove from the selected row (must be ≤ maxPick)

CoinGameResult

Component	Data Type	Description
status	CoinGameSignal	Continue the game or register a win or loss. [ WIN | PLAY | LOSE ]
